#SAE 100 R1 Steel Wire Reinforced Hydraulic Hose with Long Service Life

Brand Name : Meicely

Model Number : SAE 100R1

CertifiExcavatorion : ISO9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100000pcs/month

Delivery Time : 10-45 days

Packaging Details : Carton Packing

OE No. : SAE 100R1

Excavatoregory : Hydraulic Hose

Color : Black As Picture

Working Temperature : -40 °C to +100 °C

Working Pressure : 160 Bar

Diameter : 1/2 Inch

Material : Oil Resistant Synthetic Rubber

Warranty : 6 Months

Contact Now

#SAE 100 R1 Steel Wire Reinforced Hydraulic Hose with Long Service Life

SpecifiExcavatorion

SpecifiExcavatorion As Follows
OE No. SAE 100R1
Excavatoretory Hydraulic Hose
Material Oil Resistant Synthetic Rubber
Color Black As Picture
Work Temperature -40 °C to +100 °C
Work Pressure 160 Bar
Diameter 1/2 Inch
Warranty 6 Months

The specifiExcavatorion of SAE 100 R1 steel wire reinforced hydraulic hose (1)
Hose code Size Dash size ID WD OD
A AT
mm inch min max min max min max max
SAE100R1-01 5 3/16 -3 4.6 5.4 8.9 10.1 11.9 13.5 12.5
SAE100R1-02 6.3 1/4 -4 6.2 7.0 10.6 11.7 15.1 16.7 14.1
SAE100R1-03 8 5/16 -5 7.7 8.5 12.1 13.3 16.7 18.3 15.7
SAE100R1-04 10 3/8 -6 9.3 10.1 14.5 15.7 19.0 20.6 18.1
SAE100R1-05 12.5 1/2 -8 12.3 13.5 17.5 19.0 22.2 23.8 21.5
SAE100R1-06 16 5/8 -10 15.5 16.7 20.6 22.2 25.4 27.0 24.7
SAE100R1-07 19 3/4 -12 18.6 19.8 24.6 26.2 29.4 31.0 28.6
SAE100R1-08 25 1 -16 25.0 26.4 32.5 34.1 36.9 39.3 36.6
SAE100R1-09 31.5 1-1/4 -20 31.4 33.0 39.3 41.7 44.4 47.6 44.8
SAE100R1-10 38 1-1/2 -24 37.7 39.3 45.6 48.0 50.8 54.0 52.0
SAE100R1-11 51 2 -32 50.4 52.0 58.7 61.9 65.1 68.3 65.9
The specifiExcavatorion of SAE 100 R1 steel wire reinforced hydraulic hose (2)
Hose code Working pressure Proof pressure Min burst pressure Min bending radius Weight
MPa psi MPa psi MPa psi mm kg/m
SAE100R1-01 21 3045 42 6090 84 12810 90 0.20
SAE100R1-02 19.2 2780 38.5 5580 77 11165 100 0.25
SAE100R1-03 17.5 2540 35 5075 70 10150 115 0.31
SAE100R1-04 15.7 2280 31.5 4570 63 9135 125 0.36
SAE100R1-05 14 2030 28 4060 56 8120 180 0.45
SAE100R1-06 10.5 1520 21 3045 42 6090 205 0.52
SAE100R1-07 8.7 1260 17.5 2540 35 5075 240 0.65
SAE100R1-08 7 1015 14 2030 28 4060 300 0.91
SAE100R1-09 4.3 620 8.7 1260 17.5 2540 420 1.30
SAE100R1-10 3.5 510 7 1015 14 2030 500 1.70
SAE100R1-11 2.6 380 5.2 750 10.5 1520 630 2.00

Description

SAE 100 R1 steel wire reinforced hydraulic hose is suitable for hydraulic lines and usual industrial systems. It can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging, sunlight and cut. Therefore, it has longer service life.

Details of SAE 100 R1 steel wire reinforced hydraulic hose:

  • Structure: it is composed of three parts: tube, reinforcement and cover.
    • Tube: high quality oil resistant synthetic rubber, making the hose work well in delivering oils.
    • Reinforcement: one layer of high tensile braided steel wire, making the hose work well in high pressure environment.
    • Cover: high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging and cut.
  • Working temperature: -40 °C to +100 °C.

Other OE No.

No more other OE No. for reference.


China #SAE 100 R1 Steel Wire Reinforced Hydraulic Hose with Long Service Life factory

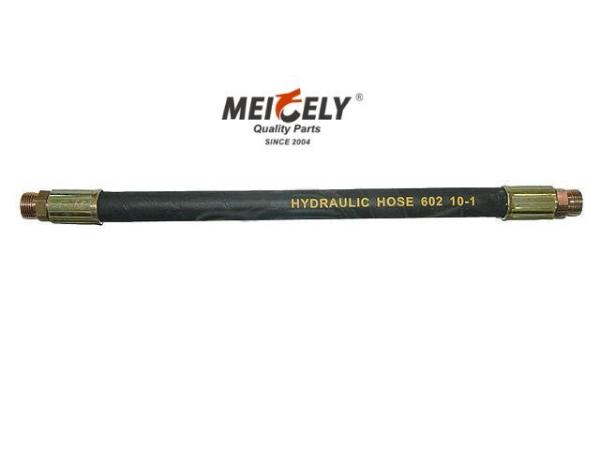

#SAE 100 R1 Steel Wire Reinforced Hydraulic Hose with Long Service Life Images
